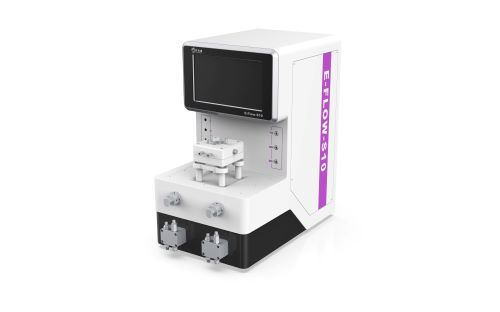

E-FLOW-S10 Electrochemistry Reaction Platform

Information

A

Suitable for electrochemical allylic site oxidation, alcohol oxidation to aldehyde, C-S bond construction and other reactions

The E-FLOW-S10 electrochemistry reaction platform operates on continuous flow electrochemical reaction principles. It features an open platform design allowing for interchangeable electrochemical microchannel reactors of varying specifications. This platform facilitates electrocatalytic or electrosynthetic reactions by incorporating modules like high pressure constant flow pumps, an electrochemical workstation, a temperature control unit, and a software control system. Users have the flexibility to select electrochemical reactors that best suit their specific application needs.

Features


  • Open platform design, convenient and quick to replace the reactor.
  • This platform is based on continuous flow electrochemical reaction principles, leading to higher reaction efficiency.

  • It's a highly integrated and one-stop solution suitable for continuous reactions like electrocatalysis and electrosynthesis.

  • The reactor allows easy electrode changes and offers various electrode specifications to choose from.

  • Its temperature-controlled reactors extend the platform's range of applications.



Specifications


ModuleSpecifications
PumpType: Dual-plunger high-pressure pump
Flow rate: 10 mL
Mateiral: 316L, C276, PTFE (working pressure < 2 MPa)
Accuracy: ±1 %
Repeatability: RSD<0.5%
Electrocatalytic microchannel
Reactor

Reactor liquid retention volume: 0.3 mL
Electrode material: graphite, platinum, titanium, copper, gold (or other materials)

Electrosynthesis
Microchannel
Reactor

Reactor liquid retention volume: 0.3 mL
Electrode material: graphite, platinum, titanium, copper, gold (or other materials)

Electrochemistry WorkstationMaximum voltage: ± 12.8 V
Voltage control accuracy: < ± 0.5 mV
Noise: < 0.01 mV
Resolution of applied voltage: 0.0015% of voltage range
Maximum current: ± 500 mA
Current resolution: 0.2 fA
Current range: ± 1 pA-± 0.5 A, 25 ranges
Constant current range: 1 pA-500 mA
Sine wave amplitude: 0.01 mV-12 V
Microchannel Photochemistry
Reactor
Reaction type: Photochemistry Reaction
Material: Borosilicate
Reactor liquid retention volume: 3 mL, 10 mL, 30 mL,50 mL
BackboneNo. of liquid pipeline: 2
Working pressure: < 5 bar
Temperaure: Rt-100 ℃
Dimension (DxWxH, mm): 500x310x563
