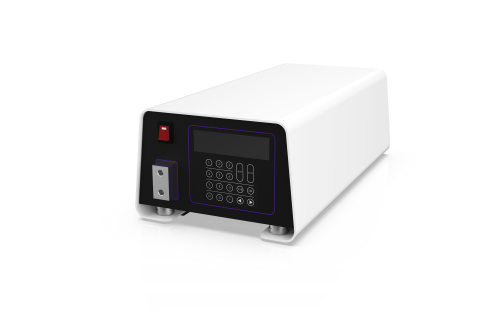

BP Series Inline Automatic Back Pressure Valve
BP Series Inline Automatic Back Pressure Valve
Fast response time of 3 seconds to automate pressure regulation
Suitable for a variety of pump materials and different gases and liquids
Customized back-pressure valve designed for high temperatures up to 200 ℃, ideal for high-temperature reactions
Highly sensitive digital pressure sensor for precise pressure regulation
| Model | BP-A250 | BP-A500 | BP-A1500 | BP-H1500 | BP-A3000 | BP-H3000 |
| Pressure | 0.1-250.0 psi | 0.2-500.0 psi | 0.2-1500.0 psi | 0.2-3000.0 psi | ||
| Material | 316L, C276 | |||||
| Accuracy | ±1% | |||||
| Repeatability | 0.5% | |||||
| Responding Time | ≤ 3 s | |||||
| Temperature | -40-70 ℃ | |||||
| Dimension (DxWxH, mm) | 360x170x115 | |||||
