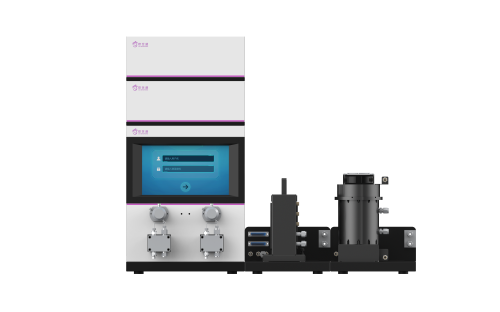

S-FLOW-100 Photochemistry Reaction Platform
Photochemistry Reaction Platform
Suitable for [2+2] photocycloaddition reaction, rearrangement reaction, bromination reaction, chlorination reaction and Claisen rearrangement.
Continuous flow photochemistry reaction platform utilizes continuous flowing samples to carry out reactions under specific wavelength light exposure. This photochemical reaction method helps reduce reaction time and enhance mass transfer characteristics. It offers a more straightforward scalability, and the resulting product can be collected cost-effectively.
The photochemical reaction platform follows a modular design approach, allowing for the installation of various light source modules and reactors based on specific application needs. The equipment comprises high-pressure constant flow pumps, light sources with different specifications, plate-form microchannel reactors, microchannel tubular-form reactors, back pressure valves, and system control software. Users can select the most suitable configuration to meet their application requirements.
Features
-
Modular design allows multiple reactors to be connected in series as needed.
-
Even illumination is achieved through a well-planned distribution of light sources.
-
The double-sided light source design maximizes light usage efficiently in a compact space.
-
With interlayer heat exchange channels, the reaction temperature can be accurately controlled.
-
A Pull/Lift-type structure for light sources enables quick replacements based on reaction requirements.
-
Various light sources like Fixed-wavelength LED light-emitting diodes and continuous xenon lamps are suitable for diverse applications.
Specifications
| Module | Specifications | |

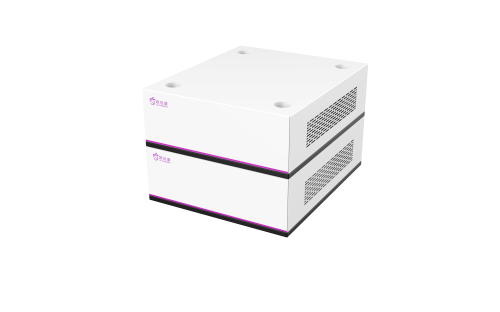

| Pump | Type: Dual-plunger high-pressure pump Flow rate: 10 mL, 50 mL, 100 mL Mateiral: 316L, C276, PTFE (working pressure ≤2 MPa) Accuracy: ±1 % Repeatability: RSD<0.5% |
|

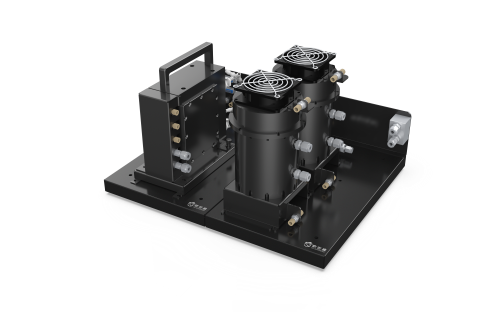

| Photochemistry Reactor (Plate-Type) |
Reaction type: Homogenous liquid-liquid reaction,heterogenous liquid-liquid reactionMaterial: Borosilicate glass Reactor liquid retention volume: 3 mL, 10 mL Light source structure: double-side light source Single-side light source power: 100 W Wavelength: 405 nm (standard), 310 nm, 365 nm, 420 nm, 460 nm and 535 nm (optional) |
|
| Photochemistry Reactor (Tubular-Type) |
Reaction type: Liquid-liquid reaction, gas-liquid reaction Material: PFA Reactor liquid retention volume: 10 mL Temperure control: external oil bath circulation Light source: continuous xenon lamp Light source power: 150 W Light source heat dissipation: Air cooling |
|
| Backbone | No. of liquid pipeline: 2 Working pressure: ≤1.5 MPa Temperaure： -20-180℃ Dimension (DxWxH, mm): 365x745x615 |
|
