AI4S Insight | The Challenge of Electrocatalytic Evaluation: How Slowness and Fragmentation Impede AI4S Implementation
The industrial push towards the "Dual Carbon" goal, green hydrogen, and fuel cells is transforming the R&D paradigm for electrocatalysts. Research strategies have shifted from "in-depth investigation of single formulations" to "high-throughput combinatorial optimization." For instance, when developing OER catalysts for the anode in PEM water electrolysis, reducing the loading of the noble metal iridium requires researchers to systematically explore hundreds of compositional gradients and process combinations. This is fundamentally a typical problem of exploring a high-dimensional material space.

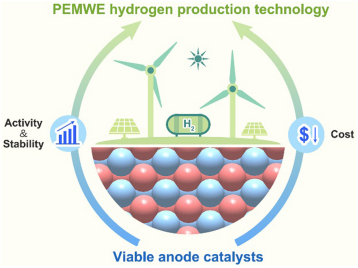

Schematic Diagram of PEM Water Electrolysis (PEMWE)
However, the efficiency of exploring high-dimensional spaces depends on whether the evaluation workflow can keep pace with synthesis. Unlike the increasingly mature high-throughput preparation capabilities on the synthesis side, the evaluation stage still relies on the outdated mode of single-channel manual serial testing. Each electrode characterizes only one sample at a time, and a full evaluation cycle often takes several days. Steps such as electrode fabrication, deoxygenation, calibration, and long-duration monitoring remain heavily manual. This severe mismatch of "fast synthesis, slow evaluation" dictates the rhythm of the entire R&D loop, limited by the slowest evaluation step. While the industry hopes to leverage AI4S to accelerate materials discovery, it is the inefficiency and inconsistent data at the evaluation stage that form the fundamental bottleneck for supplying high-quality training data. Evaluation, rather than algorithms, represents the most urgent barrier to practical AI4S deployment today.
I. Efficiency Dilemma in Electrochemical Catalyst Evaluation: "Slowness" and "Fragmentation" at the Evaluation Stage
Specifically, the bottlenecks in evaluation efficiency are mainly reflected in the following five aspects:

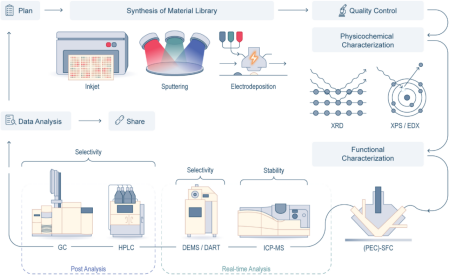

Schematic Diagram of Electrocatalyst R&D Workflow
Throughput is strictly limited to “one sample at a time.” A conventional three-electrode setup evaluates only one working electrode per run. Stability tests even require continuous operation for tens to hundreds of hours. The entire evaluation pipeline is constrained by this slow “single-point test,” and the efficiency gains from upstream high-throughput synthesis are completely eroded at the evaluation stage.
Electrode fabrication is heavily experience-dependent and difficult to standardize. Ink concentration, drop-casting volume, and drying method directly govern the exposure of active sites and the microstructure of the catalytic layer. Yet these critical steps have long relied on manual operation based on researchers’ personal dexterity. For the same catalyst formulation, electrodes prepared by different operators may show more than a 30% deviation in electrochemically active surface area (ECSA). The root cause of incomparable data often originates from uncontrollable sample preparation.
Standardizing test conditions is challenging. Inadequate deoxygenation, uncalibrated reference electrodes, and inconsistent rotation speed or potential scan rate can distort polarization curves. This renders experimental data from different research groups and batches incomparable, making cross-comparison and result reproducibility extremely difficult.
Long-term stability testing is highly labor-intensive. During galvanostatic or potentiostatic long-duration tests, issues like solution evaporation, bubble adhesion on the working electrode surface, and liquid-junction potential drift of the reference electrode can occur at any time. Researchers must regularly replenish electrolyte and adjust electrode positions. Hundreds of hours of durability experiments often require a student to monitor the screen throughout the test.
Data is scattered and isolated. Electrochemical data like Linear Sweep Voltammetry (LSV), Cyclic Voltammetry (CV), Electrochemical Impedance Spectroscopy (EIS), stability logs, and product chromatograms are stored separately in different software systems. These systems often have inconsistent timestamps and varied file formats, preventing data fragments from being directly assembled into structured datasets suitable for machine learning. Such data silos disrupt the essential closed loop needed for experiment-to-data-driven optimization.
The fundamental reason for these challenges is not a lack of precision in individual measurements. Instead, electrocatalytic performance is inherently a high-dimensional function influenced by composition, structure, interface, and operating conditions. With the current single-channel, manually operated serial evaluation mode, researchers can only perform extremely sparse "point sampling" within this high-dimensional space. This makes it difficult to even separate the main effects of each factor, let alone characterize the complex, high-order interactions among composition, process, and performance. What truly limits innovation speed is not "inaccurate measurement," but rather "insufficient measurement." The pace of evaluation dictates the iteration frequency of the R&D loop and determines how closely we can approach the true optimum within the material space. Overcoming this bottleneck in high-dimensional exploration capability represents the most significant value brought by increased throughput and standardization.
II. Ou Shisheng High-Throughput Electrocatalyst Evaluation Platform: Bridging the Gap Between Fast Synthesis and Slow Evaluation
Electrocatalyst Evaluation Platform
How can we resolve the mismatch between "fast synthesis" and "slow evaluation"? How can we transform scattered data into structured datasets? The Ou shisheng high-throughput electrocatalyst evaluation system addresses these challenges by providing a fully automated evaluation production line. Its core capabilities are summarized in six key aspects:
Multi-channel parallel operation for drastically increased throughput. The system supports the simultaneous operation of 36 channels. A single station can programmatically prepare up to 48 distinct catalysts and conduct in-situ detection. This parallel architecture fundamentally transforms the conventional serial "one sample at a time" mode, greatly shortening evaluation cycles for activity screening. Researchers can acquire data volumes dozens of times larger than traditional methods within the same time frame.
Automated electrode fabrication eliminates reliance on empirical operations. The system integrates automatic ink formulation, precise drop-casting, and programmable temperature-controlled drying. Critical parameters, including ink composition, drop volume, and drying profiles, are solidified into programmable process files. Temperature control precision reaches ±1°C. Programmable execution effectively reduces errors introduced by human factors. Full automation from liquid preparation through drying ensures strictly reproducible catalytic layer fabrication conditions, providing highly consistent initial electrode states for subsequent electrochemical tests.
Full-process automatic management of electrolytic cells. The system automatically completes electrolyte injection, programmable deoxygenation, and temperature regulation without manual intervention. Programmable deoxygenation is performed in a standardized manner with preset gas flow rates and timing sequences, ensuring every electrode is evaluated under consistent dissolved oxygen and temperature conditions, and eliminating random errors arising from manual handling.
Standardized test protocol library for full controllability and reproducibility. The system includes built-in standardized protocol templates for LSV, CV, chronoamperometry, and other tests. All parameters can be precisely defined via software and executed automatically. The software automatically guarantees consistent parameter settings for the same protocol across different channels. Long-duration stability tests support unattended operation, substantially reducing the manpower input required from researchers during prolonged experiments.
Inline product analysis for simultaneous activity and selectivity assessment. The system includes interfaces for inline IR, inline UV, inline HPLC, and inline GC, allowing real-time detection of evaluation results as needed. When coupled with optional modules like gas chromatography, quantitative analysis of gaseous and liquid products can be performed concurrently with electrochemical tests. This enables the calculation of Faradaic efficiency when combined with electrochemical response data. Consequently, both catalyst activity and selectivity can be fully acquired within a single run.
Unified software scheduling and full-chain data traceability. The software platform features a modular, building-block architecture. It comprehensively records experimental trials throughout process development, including parameter configurations, revisions, and traceable process data. Raw data is classified and stored with process methods as basic units. Sample preparation parameters, test protocols, transient response curves, and product analysis results are automatically correlated to generate structured data records, forming a unified data foundation for subsequent AI-driven analysis.
The synergy of these capabilities upgrades electrocatalyst evaluation from a fragmented, manual, serial operating mode to an intelligent production line capable of continuous, unattended batch generation of traceable data. Researchers are freed from repetitive manual work and can focus on data interpretation and scientific decision.
III. When AI4S Meets Electrocatalysis: The Greatest Bottleneck Is Not Algorithms, But Data
As Academician Guojie Li pointed out in "Prospects, Bottlenecks, and Risks of AI for Science," AI generates a massive number of seemingly plausible hypotheses, yet the vast majority cannot be verified. The verification bottleneck stands as one of the major obstacles restricting the development of AI4S.
Resolving the verification bottleneck does not require AI to possess self-awareness. The mission of AI4S is not to replace human scientific intuition, but to continuously deliver reproducible, engineerable, and scalable valid results in key fields such as materials, energy, biomedicine, and engineering physics. Once AI repeatedly proves the reliability and generalization capacity of its predictions within real experimental closed loops, it evolves beyond an auxiliary tool to become an indispensable intelligent agent embedded in the research and engineering decision-making chain. This reconstructs the experience-driven research paradigm into efficient data-driven iteration. Researchers are relieved from highly repetitive trial-and-error work and can devote cognitive resources to defining cutting-edge scientific questions, designing experimental strategies, and critically interpreting AI-generated outputs.
Nevertheless, this path has an unavoidable prerequisite: AI requires large-scale, highly consistent structured data as input.
Electrocatalysis exemplifies this challenge. Catalytic performance is a complex interplay of composition, structure, interface, and operating conditions, making it a classic high-dimensional optimization problem. Theoretically, this is an ideal scenario for AI's pattern-recognition capabilities. However, in practice, conventional single-channel evaluation tests only one sample at a time. Furthermore, sample preparation, testing, and data recording are disconnected processes. This results in sparse, discrete data that lacks unified labels for process context, falling far short of the basic requirements for AI modeling. The so-called data famine at the evaluation stage is not due to a lack of data volume, but rather a deficit of structured data that AI can readily use. This is the real barrier preventing AI4S from advancing from computation to experimentation.
The Ou Shisheng high-throughput electrocatalyst evaluation system offers a systematic solution to this fundamental issue. It transforms evaluation from fragmented manual operations into a standardized, parallelized data production line. Built on a hardware foundation of a 36-channel parallel architecture, fully automated sample preparation, and on-line product analysis, coupled with unified data management software, the system converts scattered experimental curves into traceable, comparable structured assets directly applicable for AI modeling. When every data entry enters the database with complete process context, AI gains the essential fuel to move from "fitting" to "prediction." The value of this evaluation system lies not merely in the efficiency gains of individual instruments, but in paving the crucial data pathway for implementing AI4S in electrocatalysis.
IV. Implementing the AI4S Paradigm in Electrocatalysis: Making the Self-Driven Closed Loop a Reality
The true value of AI for Science (AI4S) in electrocatalysis lies not in complex algorithms, but in its ability to create a complete experimental and data pipeline.
The Ou Shisheng high-throughput electrocatalyst evaluation system precisely fills the critical hardware and data gaps needed to build this closed pipeline, starting with the evaluation stage. When evaluation transitions from manual labor to a standardized production line, and data moves from scattered fragments to usable "fuel," the pace of electrocatalytic R&D is redefined. The efficiency gap between synthesis and evaluation is bridged. AI is no longer limited to computation due to a lack of data, and researchers can continuously approach optimal material performance within the "design–preparation–evaluation–learning" closed loop. This forms the fundamental basis for AI4S to advance from computation to experimentation and from hypothesis to verification. Ou Shisheng provides not just an instrument, but the essential infrastructure to usher electrocatalytic R&D into the data-driven era.
