Benchtop Microreaction Synthesis Platform

Microreaction Synthesis Platform boost the high-quality development of the API industry

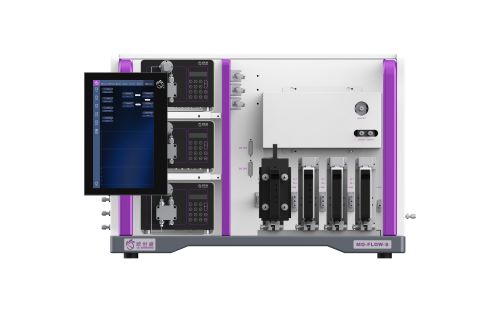

The MO-FLOW-S microreaction synthesis platform is a general flow chemistry synthesis platform-type equipment launched based on application requirements. The platform can carry multiple modules including feeding, inline pressure control, microreactor, inline measurement, and inline sample collection. Each module can be quickly replaced according to application requirements, suitable for development and validation of different process conditions in R&D and production.

Software workstation can do experimental scheme design, data tracking/collection/record, reaction process chart record, real time analysis of test results, and produce reports in various formats. The powerful software functions maximize the performance of the microreaction synthesis platform.

Features

  • One-stop solution for flow chemistry applications. The configuration is flexible and ample.
  • Digitalized quick-pluggable microchannel reactors.

  • Can be connected to an automatic inline sample collectors

  • Suitable for multiple types of reactors.

  • Can be connected to an inline Fourier mid-infrared or inline UV-Vis Spectrometer.

  • Easy operation, high safety and visualized information.


Specifications


    ModuleSpecifications
    PumpFlow rate: 10 mL, 50 mL, 100 mL
    Mateiral: 316L, C276, PTFE (working pressure < 2 MPa)
    Accuracy: ±1 %
    Repeatability: RSD<0.5%
    Gas Mass Flow MeterFlow rate: 100 sccm, 200 sccm, 500 sccm, 1 slm
    Accuracy: ±1 %
    Repeatability: RSD<0.5%
    Gas: H2, N2, CO, CO2, NH3
    Microchannel Reactor
    (Plate-Type)
    Reaction type: Liquid-liquid homogenous reaction, liquid-liquid hetergenous
    reaction, gas-liquid reaction
    Material: 316L, C276
    Reactor liquid retention volume: 3 mL, 10 mL, 30 mL, 50 mL
    Microchannel Reactor
    (Tube-Type)
    Reaction type: Liquid-liquid reaction, gas-liquid reaction
    Material: 316L, C276, PFA (working pressure < 2 MPa)
    Reactor liquid retention volume: 3 mL, 10 mL, 30 mL
    Microchannel Photochemistry
    Reactor
    Reaction type: Photochemistry Reaction
    Material: Borosilicate
    Reactor liquid retention volume: 3 mL, 10 mL, 30 mL,50 mL
    BackboneNo. of liquid pipeline: 2, 3
    No. of gas pipeline: none or 1
    No. of microreactor: 1-4
    Working pressure: < 6 MPa
    Temperaure: -20-180 ℃
    Dimension (DxWxH, mm): 527x850x590
