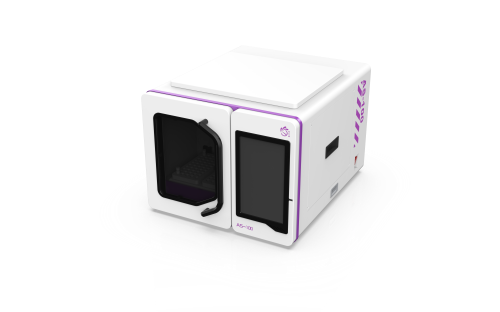

AS-100 Automatic Sample Collector (100-Slots)

Information

Automatic Sample Collectors (100-Slots)

The multifunctional inline sample collector can collect flowing products and delivery the samples directly into the analytical instrument sample bottle on a regular base. While saving the trouble of manual sample collection, it can accurately record the sampling time point and provide great support for the method development of flow chemistry.

The liquid outlet can be connected to a 100-sample inline collector, which is convenient for taking samples during the experiment, accurately recording the sampling time, and providing foundations for subsequent reaction tracking and monitoring.

Features

Automatic detection of sample bottles, no need for separate software configuration

Built-in automatic cleaning unit to avoid sample cross-contaminations

Optical detector and sampling needle synchronously run detection mode, can collect samples quantitatively

Set sampling interval time, associated with continuous process development conditions, improve process development efficiency

Specifications

	Specifications
Sample Vial Size	1.5 mL (with sealing cap)
Collection Mode	Timed collection
Inline Dilution	N/A
No. of Sample Slots	100
Sample Collection Volume	0.5-1.0 mL
Conditions to end sample collection	Volume, time
Inline Cleaning	Supported
Dimension (DxWxH, mm)	301.3x200x250
