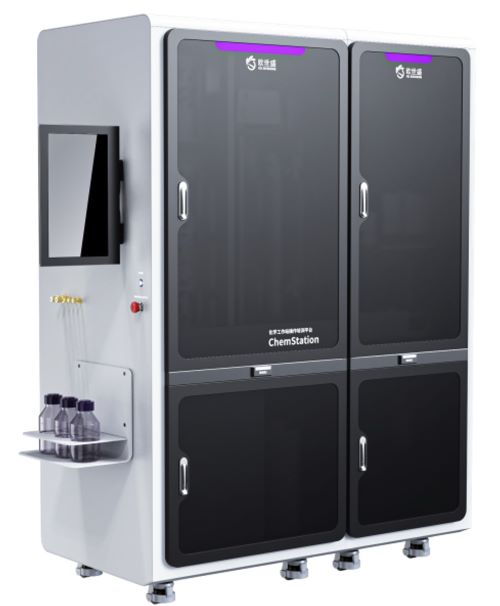

M-FLOW-M Microreaction Synthesis Platform
Floor Microreaction Synthesis Platform
Microreaction Synthesis Platform boost the high-quality development of the API industry
The MO-FLOW-M microreaction synthesis platform is a general flow chemistry synthesis platform-type equipment launched based on application requirements. The platform can carry multiple modules including feeding, inline pressure control, microreactor, inline measurement, and inline sample collection. Each module can be quickly replaced according to application requirements, suitable for development and validation of different process conditions in R&D and production.
Software workstation can do experimental scheme design, data tracking/collection/record, reaction process chart record, real time analysis of test results, and produce reports in various formats. The powerful software functions maximize the performance of the microreaction synthesis platform.
Digitalized quick-pluggable microchannel reactors.
Can be connected to an automatic inline sample collectors
Suitable for multiple types of reactors.
Can be connected to an inline Fourier mid-infrared or inline UV-Vis Spectrometer.
Easy operation, high safety and visualized information.
| Module | Specifications | |
| Pump | Flow rate: 10 mL, 50 mL, 100 mL Mateiral: 316L, C276, PTFE (working pressure < 2 MPa) Accuracy: ±1 % Repeatability: RSD<0.5% | |
| Gas Mass Flow Meter | Flow rate: 100 sccm, 200 sccm, 500 sccm, 1 slm Accuracy: ±1 % Repeatability: RSD<0.5% Gas: H2, N2, CO, CO2, NH3 | |
| Microchannel Reactor (Plate-Type) | Reaction type: Liquid-liquid homogenous reaction, liquid-liquid hetergenous reaction, gas-liquid reaction Material: 316L, C276 Reactor liquid retention volume: 30 mL, 50 mL | |
| Microchannel Reactor (Tube-Type) | Reaction type: Liquid-liquid reaction, gas-liquid reaction Material: 316L, C276, PFA (working pressure < 2 MPa) Reactor liquid retention volume: 3 mL, 10 mL, 30 mL | |
| Microchannel Photochemistry Reactor | Reaction type: Photochemistry Reaction Material: Borosilicate Reactor liquid retention volume: 3 mL, 10 mL, 30 mL,50 mL | |
| Backbone | No. of liquid pipeline: 2, 3 No. of gas pipeline: none or 1 No. of microreactor: 1-6 Working pressure: < 6 MPa Temperaure： -20-180 ℃ | |
