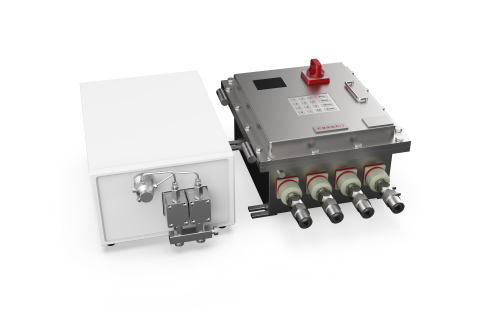

EXDP Series Dual-Plunger High-Pressure Pump （Explosion Proof Pump)
EXDP Series Dual-Plunger High-Pressure Pump
In flow chemistry, the feeding module acts as the power source for the entire flow system, playing a crucial role in ensuring the accurate completion of flow chemistry processes. Key factors for evaluating the feeding system include feeding accuracy, stability, reliability, and the variety of fluids that can be delivered.
To accommodate different raw materials with various properties, materials such as 316L and C276 are available.
The system offers a flow range of 0.001 to 100 mL/min to provide optimal delivery.
It features an open control platform with multiple communication ports, including RS485 and RS232, allowing for greater flexibility.
Users can easily switch between two working modes: constant current mode or constant pressure mode.
Cold-Pressed Plunger
Our self-developed cold-pressed plunger rod assembly process utilizes an imported Swiss plunger rod, achieving international standards with coaxiality of less than 0.01 mm. This innovation fills the gap in domestic cold-press assembled plunger rods and ensures the long-term stable operation of the pump.
Double Ball valve
The double ball valve is designed with enhanced anti-interference capabilities, effectively preventing impurities or air bubbles from affecting liquid feeding by the infusion pump.
Multifuction Software Control
The constant pressure feeding mode allows the control software to optimize pump performance. By using this software, the pump can operate in either constant flow mode or constant pressure mode, with the ability to switch between them based on application needs. Additionally, the gradient feeding mode can be tailored to meet specific application requirements, enabling operation at various flow rates at different time points, making it ideal for flow chemistry process development.
| Model | EXDP-S10 | EXDP-S50 | EXDP-S100 | EXDP-S200 | EXDP-S500 |
| Flow Rate | 0.001-9.999 mL/min | 0.1-50 mL/min | 0.1-100 mL/min | 0.1-200 mL/min | 1-500 mL/min |
| System Pressure Resistance | ≤40 Mpa | ≤25 Mpa | ≤25 Mpa | ≤12 Mpa | ≤10 Mpa |
| Working Pressure | ≤25 Mpa | ≤15 Mpa | ≤15 Mpa | ≤10 Mpa | ≤5 Mpa |
| Accuracy | ± 1% | ||||
| Repeatability | RSD < 0.5% | RSD < 1% | |||
| Setting Resolution | 0.001 mL/min | 0.1 mL/min | |||
| Dimension (DxWxH, mm) | Pump: 343.5x185x145 Control Box: 400x400x210 | Pump: 500x250x240 Control Box: 400x400x210 | |||
| Model | EXDP-H10 | EXDP-H50 | EXDP-H100 | EXDP-H200 |
| Flow Rate | 0.001-9.999 mL/min | 0.1-50 mL/min | 0.1-100 mL/min | 0.1-200 mL/min |
| System Pressure Resistance | ≤40 Mpa | ≤25 Mpa | ≤25 Mpa | ≤12 Mpa |
| Working Pressure | ≤25 Mpa | ≤15 Mpa | ≤8 Mpa | ≤5 Mpa |
| Accuracy | ± 1% | |||
| Repeatability | RSD < 0.5% | RSD < 1% | ||
| Setting Resolution | 0.001 mL/min | 0.1 mL/min | ||
| Dimension (DxWxH, mm) | Pump: 343.5x150x145 Control Box: 400x400x210 | Pump: 343.5x185x145 Control Box: 400x400x210 | ||
