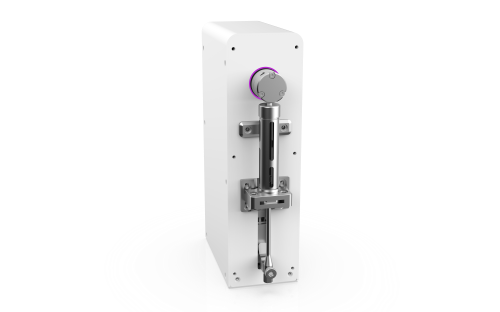

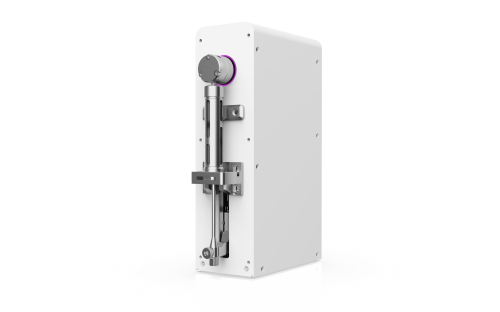

SP Series Single-Syringe High-Pressure Pump
SP Series Single-Syringe High-Pressure Pump
In flow chemistry, the feeding module acts as the power source for the entire flow system, playing a crucial role in ensuring the accurate completion of flow chemistry processes. Key factors for evaluating the feeding system include feeding accuracy, stability, reliability, and the variety of fluids that can be delivered.
High borosilicate thick-walled glass and a high-pressure switching valve work together to reach a maximum output pressure of 10 MPa.
A high-precision ball screw, paired with a precision motor subdivision drive, ensures a minimum liquid flow rate of 0.0001 mL/min.
An open digital interface allows for user-driven further development.
| Model | SP-3 | SP-H3 | SP-10 | SP-H10 |
| Drive Mode | Single- Syringe pump | |||
| Flow Rate | 0.0001-3.0 mL/min (under 1 mL) | 0.01-9.99 mL/min (under 5 mL) | ||
| Material | 316L+ high borosilicate glass | C276+ high borosilicate glass | 316L+ high borosilicate glass | C276+ high borosilicate glass |
| System Pressure Resistance | ≤10 Mpa | ≤9 Mpa | ||
| Working Pressure | ≤9 Mpa | ≤8 Mpa | ||
| Accuracy | ± 1% | |||
| Repeatability | RSD < 0.3% | |||
| Setting Resolution | 0.0001 mL/min | |||
| Dimension (DxWxH, mm) | 220x98x300 | |||
