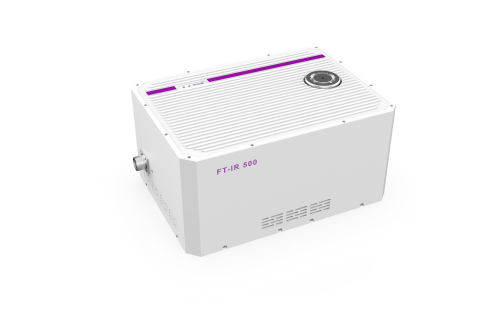

The Inline Fourier Mid-Infrared Spectrometer is a rapid, reliable, and commonly used detection tool. Upon interaction with infrared light and compounds, the different molecular bonds within the compounds vibrate and rotate accordingly. By analyzing the position, shape, and intensity of peaks in the infrared absorption spectrum, one can obtain the characteristic absorption spectrum of various compounds. This aids in identifying unidentified compounds and conducting quantitative analysis. When combined with an integrated ATR circulation collection system, it can detect the components of test samples in real-time, making it ideal for inline process measurement.
Inline UV-Vis Spectrometer
When the inline measurement module combines with process analysis technology, flow chemistry allows for quick analysis, optimization, and scale-up of chemical reactions. Real-time analysis monitors steady-state conditions, troubleshoots process issues, and discovers reactive intermediates. By analyzing inline measurement results, the feeding speed, temperature, and pressure of the reaction system can be optimized in real time for closed-loop control of the flow chemistry process.
The inline measurement system consists of a light source, monochromator, flow cell, receiver, electrical controller system, power supply, and other components.
The Inline Fourier Mid-Infrared Spectrometer is a rapid, reliable, and commonly used detection tool. Upon interaction with infrared light and compounds, the different molecular bonds within the compounds vibrate and rotate accordingly. By analyzing the position, shape, and intensity of peaks in the infrared absorption spectrum, one can obtain the characteristic absorption spectrum of various compounds. This aids in identifying unidentified compounds and conducting quantitative analysis. When combined with an integrated ATR circulation collection system, it can detect the components of test samples in real-time, making it ideal for inline process measurement.
This instrument can be fitted with either a highsensitivity room temperature detector or an electric cooling MCT detector, which is suitable for detecting trace compounds.
| Model | Specifications | |||
| Maximum Temperature Tolerance | Diamond (200℃) | Spectral range | 5000-500 cm-1 | |
| Beam Splitter | Humidity-resistant ZnSe | Communication Interface | 1x LAN(RJ45) | |
| Resolution | Better than 2 cm -1 | Detector | TE-MCT | |
| ATR Material | Diamond (1-14) | Detection Mode | Continuous inline monitoring and offline measurement mode | |
| Window Material | Diamond | Flow Cell Volume | 39 µL | |
| Flow Cell Material | 316L, C276 | |||
| Dimension (DxWxH, mm) | 381x274x200 | |||
Suitable for continuous inline monitoring of reduction and chromogenic reactions.
